Description

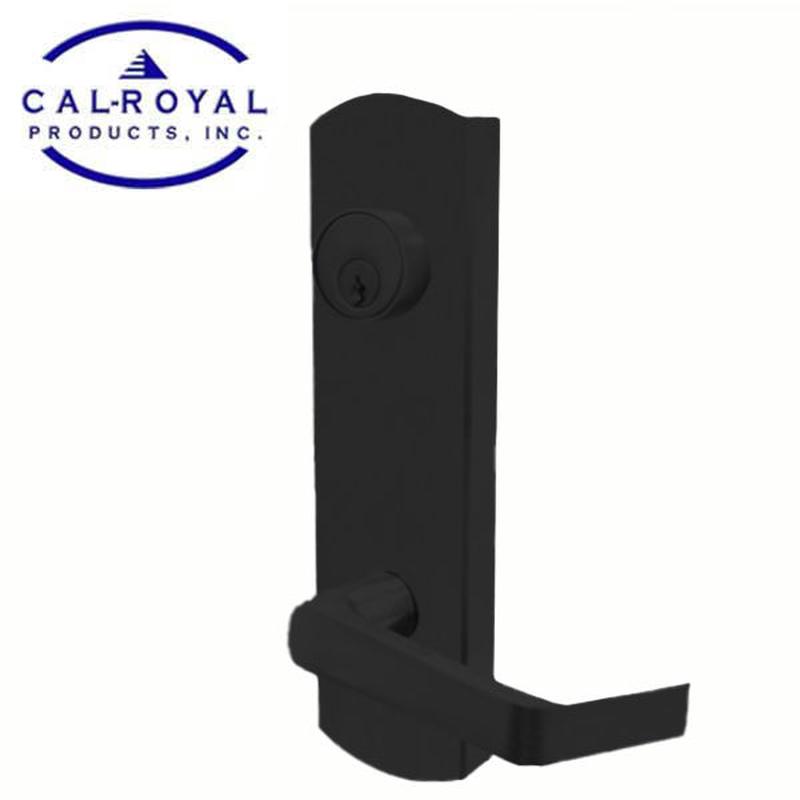

The Rigid Lever Escutcheon Trim is designed to work with 9800series devices (not included). Escutcheon Trim Only.
Features
- Rigid, non-clutch mechanism
- Includes Mortise Cylinder (Schlage C Kwy.)
- Double heavy-duty spring support to prevent sagging and enhance operation
- Grade 1, thru-bolted design. Non-handed design. Easily field reversible
- Hardened steel heavy-duty tailpiece. Available for fire and non-fire-rated rim and vertical rod exit devices
Specifications
| Application | Escutcheon Lever Exit Trim Application For 9800 Series exit devices |
| Function | Classroom – Trim always operable and free (ANSI 14) |
| Handing | Non-Handed |
| Keyway | Schlage C Kwy |
| Door Thickness | 1-3/4″ |
| Backset | 2-3/4 standard |
| Trim | Escutcheon Lever Exit Trim |
| Escutcheon | Forged brass, 2-5/16 x 8-1/2 |
| Lever | 4-3/4 long |
| Finish | US1 -Matte Black |
| Certifications | ANSI Grade 1 Certified, UL – UL 10C UL Listed 10C, ADA |
Downloads
- Cut Sheet
