Description

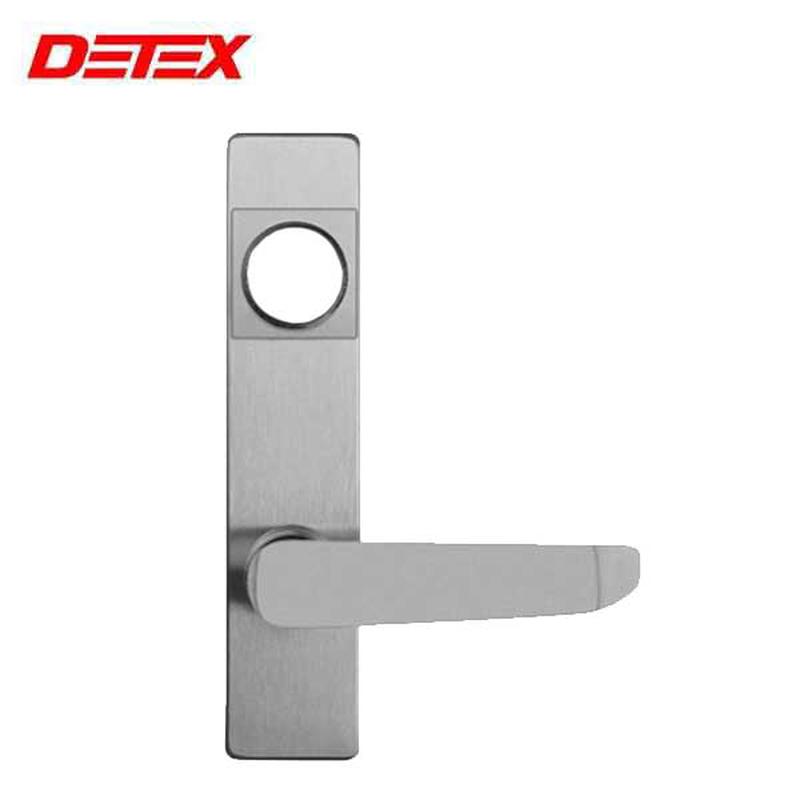

This Detex 08BN-689 is an outside lever trim that can be used to operate the Detex V40 Series alarmed exit devices from the outside of the door. A key will lock and unlock the lever when access is necessary from the outside.
Features
- Through-bolted modular design that allows for changing of the function and the trim without any modification to the exit device
- Non Handed design. Easily field reversible.
- Cylinder collars for 5 and 6 pin cylinders are provided with all trims
- Covers 161 Prep – adapter included
- 1-1/8 mortise cylinder required (Not included)
Specifications:
| Function: | 08 Classroom – Key outside, Thumbturn inside |
| Style: | Lever Trim |
| Lever: | BN Lever |
| Handing: | Field Reversible |
| Cylinder: | 1-1/8 mortise cylinder (Not included) |
| Cross Bore: | 2-1/8″ cross-bore |
| Edge Bore: | 1″ edge-bore |
| Backset: | 2-3/4″ backset |
| Compatibility: | Value Series Devices |
| Stile: | 2″ narrow stile |
| Finish: | 689 – Powder Coated aluminum, 693 – Black |
| Certifications: | ANSI Grade 1 |
Downloads:
- Spec Sheet
- Installation Guide
