Description

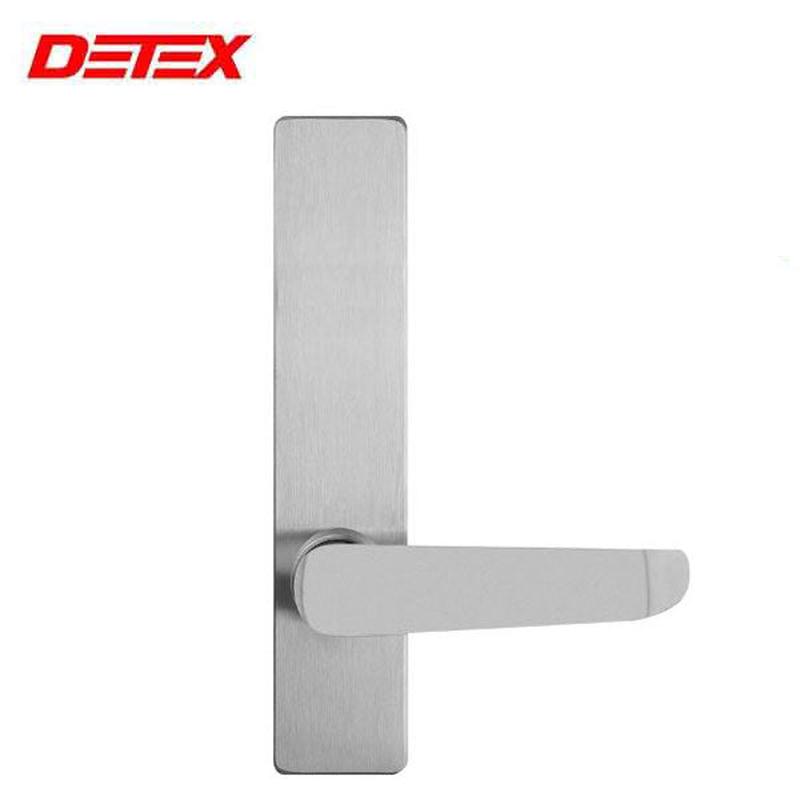

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Detex uses the BHMA functions/descriptions for all trims.
Features
- S Lever Standard
- Aluminum Finish
- Blank Escutcheon
- 161 Prep Cover Plate Standard
Specifications
| Function | 14 – Entrance by trim when latch bolt is released by knob or lever. Always active, no cylinder. |
| Door Thickness | 1-3/4″ – 1-3/4″ |
| Compatible | Value Series Devices |
| Cylinder | No Cylinder, Blank Escutcheon |
| Backset | 2-3/4″ |
| Handing | Field reversible |
| Lever | BN Lever |
| Trim | Escutcheon |
| Stile | 2″ Narrow stile |
| Finish | 689 – Aluminum Plated |
| Lever Projection | 2-15/16″ |
| Dimensions | 8-1/4″ x 1-29/32″ x 1-5/16″ |
| Certifications | ANSI Grade 1 |
Downloads
- Data Sheet
- Installation Guide
