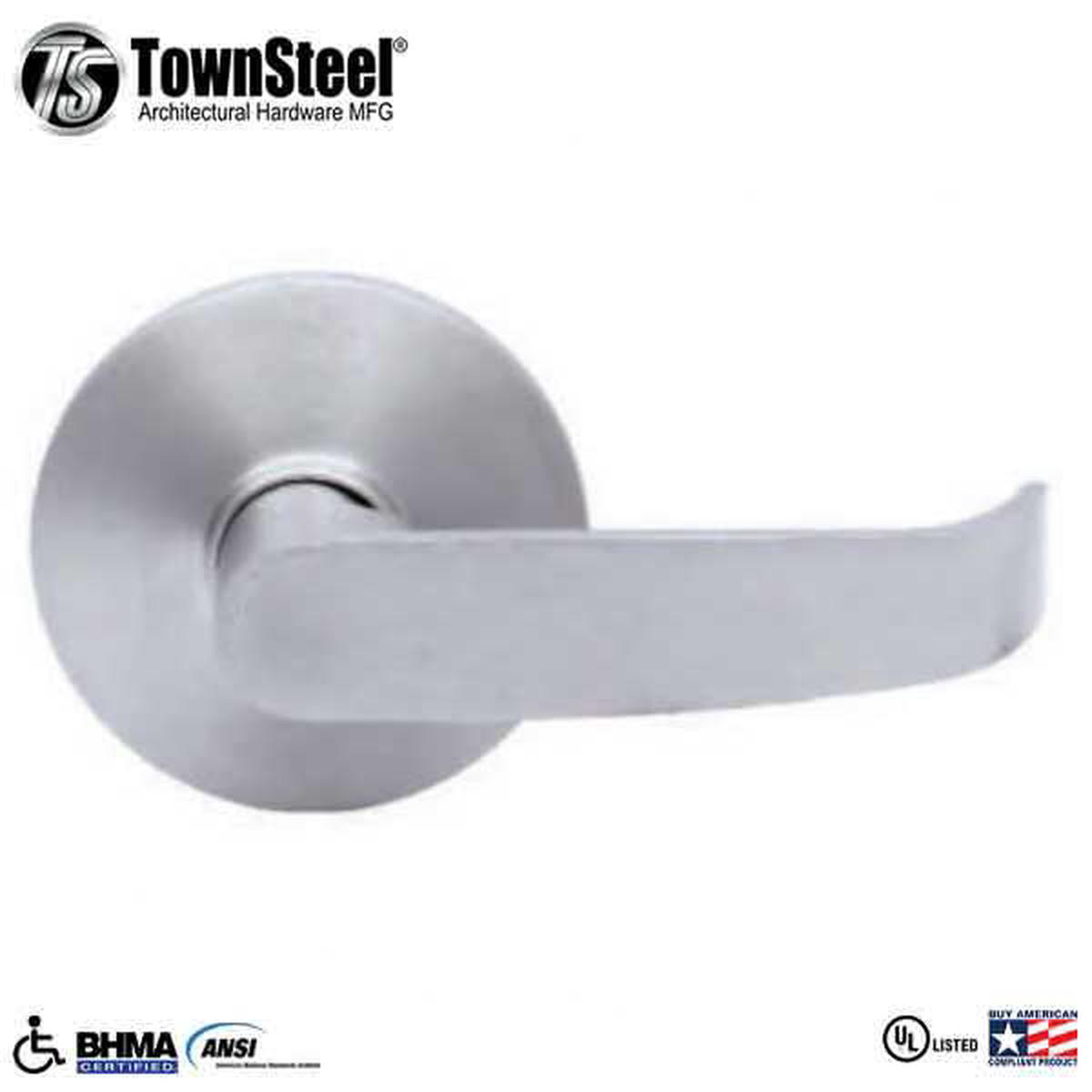

TownSteel 8211 ED8900LQ 8211 Sectional Lever Trim 8211 Dummy 8211 LQ Curved Lever 8211 Non-Handed 8211 Compatible with Rim SVR LBR 038 3 Point Push Bars 8211 Satin Chrome 8211 Grade 1

Description

The ED8900LQ Sectional Lever Trim is designed to be compatible with 8900 series Rim, SVR, LBR, and 3PT devices. ED8900LQ is ANSI Certified Grade 1 and UL listed for Panic Hardware. More Information Below Specifications Application Sectional Lever Trim Function Dummy Lever Style LQ Lever Handing Non-Handed Compatibility Compatible with 8900 Series Exit Device SVR, LBR & 3 Point Push Bars Dogging Pull when Dogged Mounting Thru-bolted mounting Rose Diameter 3-11/32 (84.8mm) Lever Length 5-1/4 (13mm) Door Thickness 1-3/4 (45mm) Cylinder Dummy Function Finish 626 Satin Chrome Grade 1 Certifications ANSI/BHMA – A156.3-2008 Grade 1 CertifiedUL – UL 305 panic hardware listedBAA – Meets requirements of the Buy American ActADA – Meets guidelines of the Americans with Disabilities Act Manufacturer Warranty 1-year limited manufacturer warranty Downloads Data Sheet Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-0888, [email protected] or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
