Description
TNS-ED8900LS-09-M-SC-626

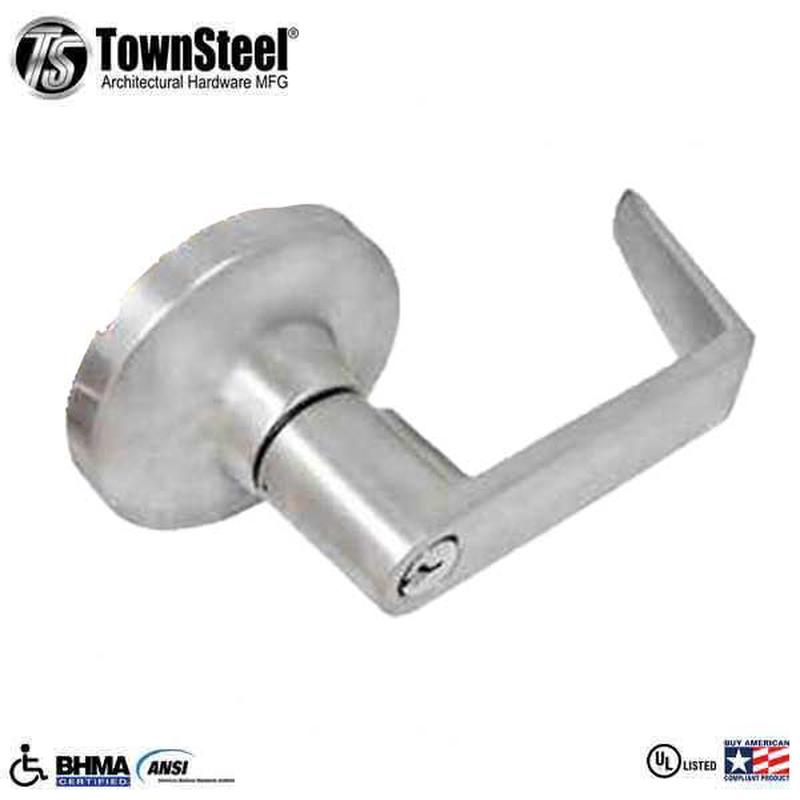

The ED8900LS Sectional Lever Trim is designed to be compatible with the 8900 series Mortise Exit Device. ED8900LQ is ANSI Certified Grade 1 and UL listed for Panic Hardware.
More Information Below
Specifications
| Application | Sectional Lever Trim |
| Function | Storeroom – Nightlatch |
| Lever Style | LS Lever |
| Handing | Non-Handed |
| Compatibility |
Compatible with 8900 Series Exit Device: Mortise Exit Device |
| Dogging | Key Retracts Latch Bolt |
| Mounting | Thru-bolted mounting |
| Rose Diameter | 3-11/32 (84.8mm) |
| Lever Length | 5-1/4 (13mm) |
| Door Thickness | 1-3/4 (45mm) |
| Cylinder | 6-Pin Schlage Keyway |
| Finish | 626 Satin Chrome |
| Grade | 1 |
| Certifications | ANSI/BHMA – A156.3-2008 Grade 1 Certified UL – UL 305 panic hardware listed BAA – Meets requirements of the Buy American Act ADA – Meets guidelines of the Americans with Disabilities Act |
| Manufacturer Warranty | 1-year limited manufacturer warranty |
Downloads
- Data Sheet
Return Policy: We do not accept returns on unsealed products. In order to return a defective item, a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-0888, [email protected] or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
